Life has conspired to make it hard to find time for working on the Jeep this week. But I did manage to finish up the front rack. I tapped the holes for various mounting points - note that the holes at the bottom of the uprights are *not* circular. They are ovals. This was a royal pain to do. The tool that finally worked was my Dremel with a tungsten carbide cutting bit. This worked well, but made thousands of tiny needle-like slivers which worked their way into my clothing (and any exposed skin). Be careful out there...
Here is the final rack, with 3/8 inch threaded rod connectors welded and rods inserted, and the rack bolted to the uprights. In the background is the ElectroJeep's German cousin, the volt914:
I then used POR-15 to paint the rack (including the degreaser / phosphoric acid rust converter steps) and mounted everything for real in the engine compartment:
Next weekend is Labor Day. Hopefully I'll manage to labor well and make lots of progress...
Monday, August 25, 2008
Friday, August 15, 2008
Front Rack Mounts
This week, in the evenings, I've been working on the front rack mounting points. These have to be extremely sturdy - they will be supporting the weight of 440 pounds of batteries, and will have to handle acceleration and deceleration, too (not to mention the forces of a collision, Heaven forbid). I started with 1 1/2 inch box tubing, with 3/16 inch thick walls. I cut it to the desired lengths with a chop saw:
Here are the lengths of box tubing precariously balanced close to where they will end up. I did this to get a sense of where the top rails would be relative to the motor mounts:

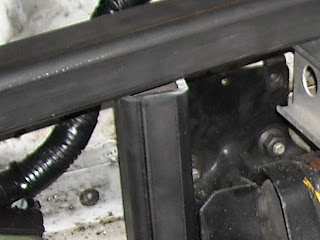

A closeup of one of them shows the angle at which it crosses the mounting point - roughly 13 degrees:
And, of course, what would a good summer garage project be without hornets (scroll to the end of that post)? They seem attracted to the buzzing sound of power tools. I've spent almost as much time chasing these nasty little bugs as I've spent working.
Anyway, back to the real work. I removed the engine mounting brackets, which will get box tubing posts welded to them. After getting everything cleaned up, here is all of it (the driver's side bracket is on the left, the passenger's on the right):
There are little lips at the edge of the engine mount brackets. So I ground them off (my wife Jill got a nice spray of grinding sparks as she took this picture - oops - a definite case of "if you can read this you are too close!"):
I then welded the 8" box tube posts to the mounts. Despite the 90-degree weather, I'm wearing long pants, long sleeves, and heavy gloves, to avoid "weld-burn" which is pretty much exactly the same as sunburn:
And here are the brackets, with the posts attached:
They fit nicely in the engine compartment, very even and with ample clearance for the engine mounts:
I test-fit the rack to decide how far down the cross beams would go:
And here is what I decided - to knock off roughly 1/4 inch more in height so that the hood will definitely clear the batteries:
I welded the cross-members to the brackets:
I'm definitely getting better at welding. These are possibly the best welds I've done to date - these were just wire brushed to get the flux crap off - no grinding involved - these are the actual weld beads:
And here are the nearly complete brackets / mounts in place in the engine compartment:
...with the rack sitting on top:
With the mounts nearly complete, the assembly is sturdy enough to place an actual battery there for the first time. Looks good....
However, I've learned that looks can be deceiving. So, I performed a test. I took two pieces of foam-board (which together are slightly thicker than the plastic top plus hold-downs will be) and smeared sticky oil around on the top so I could see if it actually touched the hood when it is fully closed. As you can see, no oil ended up on the hood. This is the battery that is most likely to interfere with that diagonal structural member. But nothing touched, so everything looks good to go:
Next up - finishing the front rack by creating the lid. Originally, I was going to build a complete rack box up around it. But now, I think that is overkill. Instead, I'm going to weld 3/16" angle stock 1.5" wide together into a hold-down, and mount that over the plastic lid. And then screw the whole thing on with 8 3/8" threaded rods. Should be more than strong enough against lateral and vertical forces.
One more detail - I need to figure out some bracing for lateral and front/back motion. The mounts as designed are fine for the simple vertical forces, but the day-to-day acceleration / deceleration / turning forces will eventually weaken them unless braced.
Here are the lengths of box tubing precariously balanced close to where they will end up. I did this to get a sense of where the top rails would be relative to the motor mounts:
A closeup of one of them shows the angle at which it crosses the mounting point - roughly 13 degrees:
And, of course, what would a good summer garage project be without hornets (scroll to the end of that post)? They seem attracted to the buzzing sound of power tools. I've spent almost as much time chasing these nasty little bugs as I've spent working.
Anyway, back to the real work. I removed the engine mounting brackets, which will get box tubing posts welded to them. After getting everything cleaned up, here is all of it (the driver's side bracket is on the left, the passenger's on the right):
There are little lips at the edge of the engine mount brackets. So I ground them off (my wife Jill got a nice spray of grinding sparks as she took this picture - oops - a definite case of "if you can read this you are too close!"):
I then welded the 8" box tube posts to the mounts. Despite the 90-degree weather, I'm wearing long pants, long sleeves, and heavy gloves, to avoid "weld-burn" which is pretty much exactly the same as sunburn:
And here are the brackets, with the posts attached:
They fit nicely in the engine compartment, very even and with ample clearance for the engine mounts:
I test-fit the rack to decide how far down the cross beams would go:
And here is what I decided - to knock off roughly 1/4 inch more in height so that the hood will definitely clear the batteries:
I welded the cross-members to the brackets:
I'm definitely getting better at welding. These are possibly the best welds I've done to date - these were just wire brushed to get the flux crap off - no grinding involved - these are the actual weld beads:
And here are the nearly complete brackets / mounts in place in the engine compartment:
...with the rack sitting on top:
With the mounts nearly complete, the assembly is sturdy enough to place an actual battery there for the first time. Looks good....
However, I've learned that looks can be deceiving. So, I performed a test. I took two pieces of foam-board (which together are slightly thicker than the plastic top plus hold-downs will be) and smeared sticky oil around on the top so I could see if it actually touched the hood when it is fully closed. As you can see, no oil ended up on the hood. This is the battery that is most likely to interfere with that diagonal structural member. But nothing touched, so everything looks good to go:
Next up - finishing the front rack by creating the lid. Originally, I was going to build a complete rack box up around it. But now, I think that is overkill. Instead, I'm going to weld 3/16" angle stock 1.5" wide together into a hold-down, and mount that over the plastic lid. And then screw the whole thing on with 8 3/8" threaded rods. Should be more than strong enough against lateral and vertical forces.
One more detail - I need to figure out some bracing for lateral and front/back motion. The mounts as designed are fine for the simple vertical forces, but the day-to-day acceleration / deceleration / turning forces will eventually weaken them unless braced.
Sunday, August 10, 2008
Front Rack, Part II
I got a little more time to work on the front rack, welding the cross-members in to the base. This picture shows 8 batteries nestled in the base, a perfect fit:
Here is the same rack, propped approximately in its final location. Next up - welding the supports from box tubing (1 1/2 inch size, with 3/16 inch walls). The rack will bolt on to the supports, and the supports will bolt in to the frame rail. I'm considering making the remainder of the rack a separate bolt-on piece so that it is not so heavy.
Here is what it is supposed to look like when all is said and done - from Google Sketchup:
Here is the same rack, propped approximately in its final location. Next up - welding the supports from box tubing (1 1/2 inch size, with 3/16 inch walls). The rack will bolt on to the supports, and the supports will bolt in to the frame rail. I'm considering making the remainder of the rack a separate bolt-on piece so that it is not so heavy.
Here is what it is supposed to look like when all is said and done - from Google Sketchup:
Saturday, August 9, 2008
Welding Racks, Part 1
Today I completed one rack and got a good start on another. The completed rack is a single-battery rack to go in the engine compartment. Here it is after priming and painting:
And here it is with a battery snuggled down in it. The angles sticking out to either side will be drilled so that I can attach a hold-down (which will be attached to a plastic lid to keep fingers away from the 316-volt system):
I also got a start on the big 8-battery front rack. Note the scab plates in the middle of the left and right sides - I miscalculated by 1/2 an inch, which was more than enough to keep the batteries from fitting. After thinking about it for a bit, I just cut the left/right sides in half and butt-welded an angle bracket scab plate across. Should be plenty strong, especially given that the battery rack mounting points (4 of them) will be at about the CG of the cut sections.
This is the same picture, zoomed in so you can see where I plan on attaching the mounts, circled in red. I plan on using 1 1/2" box tubing (with 3/16" walls) for the vertical legs. Either 1 1/2 angle stock or box tubing will serve as the supporting crossmember.
And here it is with a battery snuggled down in it. The angles sticking out to either side will be drilled so that I can attach a hold-down (which will be attached to a plastic lid to keep fingers away from the 316-volt system):
I also got a start on the big 8-battery front rack. Note the scab plates in the middle of the left and right sides - I miscalculated by 1/2 an inch, which was more than enough to keep the batteries from fitting. After thinking about it for a bit, I just cut the left/right sides in half and butt-welded an angle bracket scab plate across. Should be plenty strong, especially given that the battery rack mounting points (4 of them) will be at about the CG of the cut sections.
This is the same picture, zoomed in so you can see where I plan on attaching the mounts, circled in red. I plan on using 1 1/2" box tubing (with 3/16" walls) for the vertical legs. Either 1 1/2 angle stock or box tubing will serve as the supporting crossmember.
Charger is here!
The charger arrived today. It took a while, but Ryan at EV Source was very helpful and honest about the delivery issues. It is a Manzanita Micro PFC-20. There are two neat features that this has over the Zivan NG-3. First, it can adapt to AC line voltages from 120 to 240 volts. Second, it has a built-in data bus interface which you can use for better equalization of batteries (especially important with AGM batteries).
This is the last major component to arrive. On to building battery racks and getting ready to string it all together...
This is the last major component to arrive. On to building battery racks and getting ready to string it all together...
